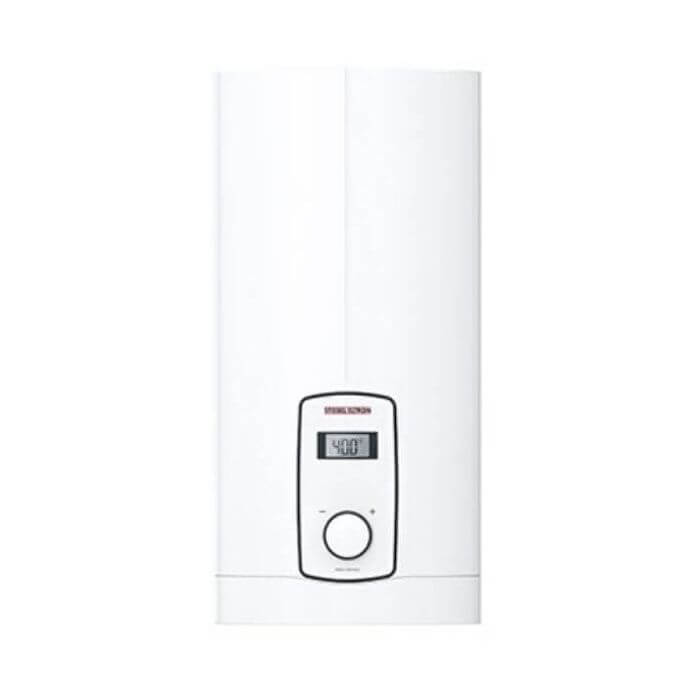

Stiebel Eltron DHB-E 18 LCD
SKU Stiebel Eltron DHB-E 18 LCD 236748
Stiebel Eltron DHB-E 18 LCD electric Instantaneous water heater 19.4kW 3 Phase perfect for small spaces
$1,395.00 inc. GST
- Delivery across Victoria · ships from our Sunshine warehouse
- Click & collect · 29 Drayton Street, Sunshine VIC
- 12-month local warranty · 14-day money-back guarantee
Not sure it'll fit?
12-month local warranty
14-day money-back guarantee
100% authentic
0% card surcharge
Description
Stiebel Eltron DHB-E 18 LCD
Electric Instantaneous Water Heater 19.4kW 3 Phase
Model 236748

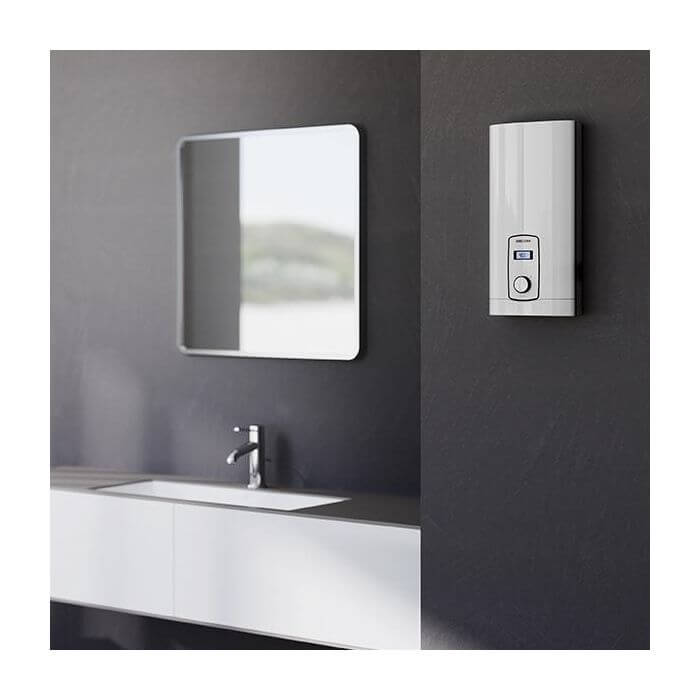

Typically installed under benches or in cupboards, our small capacity electric units are designed to fit into the tightest spaces.
The DHB-E LCD instantaneous water heater combines electronic control with an easy-to-use LCD display for precise temperature selection from 20°C to 60°C. Featuring 3i Technology, it ensures energy-efficient operation and delivers a reliable, constant supply of hot water whenever you need it.
Product Details
High quality engineering
- Made in Germany
- LCD controller for easy temperature selection
- Bare wire heating element suitable for hard and soft water areas
- WaterMark Lic No. WMKA00301, AS3498 compliant
- Electronically controlled for accuracy and efficiency
Flexible installation
- Compact, space-saving design
- No safe tray or ventilation required
- DHB-E 18 LCD — 19.4 kW, 27 A per phase, three phase 415 V
Warranty
- 7-year full parts and labour domestic warranty*
*Conditions apply — refer to warranty policy for full details.
Technical Data
| Product | DHB-E 18 LCD | ||
| Article number | 236748 | ||
| Rated output (415V) | 19.4kW | ||
| Rated current (415V) | 27 Amp | ||
| Phases | 3/PE | ||
| Electrical Installation | As per AS/NZS3000 | ||
| Installation requirements | AS/NZS3500.4.2 & local requirements | ||
| Switch on flow rate (minimum flow rate required to switch on the water heater) | 2.5L/min | ||
| Max. permissible pressure | 1 MPa | ||
| Temperature adjustment | 20-60°C | ||
| IP Rating | |||
| Height | 466mm | ||
| Width | 225mm | ||
| Depth | 116mm | ||
| Weight | 2.9kg | ||
| Colour | white | ||
| Nominal capacity | 0.4L | ||
| Approvals | WaterMark Lic No. WMKA00301, AS3498 | ||
| For one/several draw off points | Yes/Yes | ||
| Heating system | Bare wire | ||
| Programmable temperature | No | ||
| Accepts pre-heated water (solar) | Yes (incoming hot water must not exceed 55°C) | ||
Additional information
| Weight | 24 kg |
|---|
