Diaphragm Pump For RO System

Description

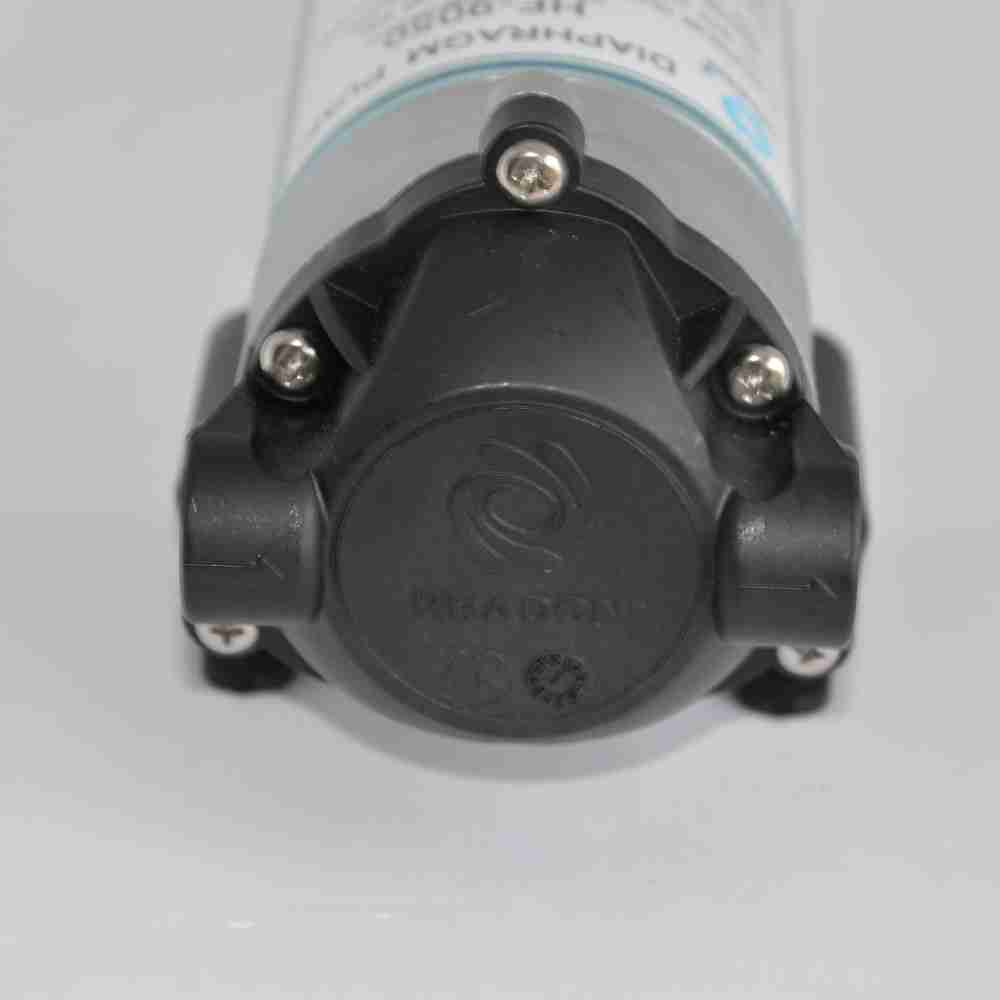

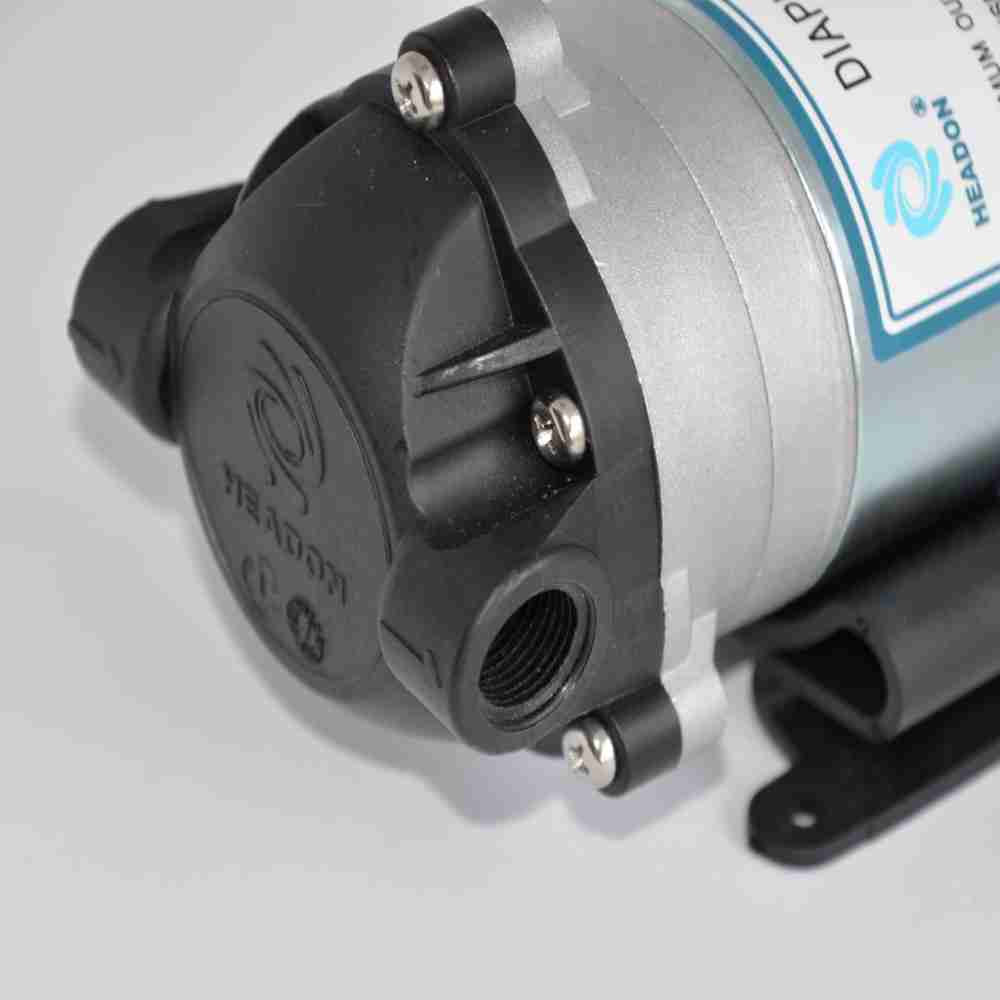

Diaphragm Pump For RO System

All RO membranes have an optimal minimum operating pressure, home and light commercial have an optimal minimum operating pressure of 50psi. The system will operate below 50psi, however, the performance of your RO membrane will not be at it’s best causing your system to produce more wastewater. Adding a diaphragm pump ror RO system is an easy way to get your system running at the optimal pressure.

Benefits of diaphragm pump for RO system

● Less waste water ratio
● Saves water
● Compact easy to install
● Suitable for most residential RO systems
● Option to use 1/4″ or 3/8″ fittings

Specifications

● Power: 24VDC / 0.26AMPS
● Weight: 1.70 kg
● Open flow rate: : 1.2LPM
● Maximum temperature: 65c
● Maximum outlet pressure: 125 PSI
● Fitting: Inlet / outlet ports 3/8″ thread
● Maximum temperature: 65c
● Duty cycle: Continuous
● Runs dry without damage
● Model HF-9050

Applications

● Point of Use (POU) Drinking Water Systems
● Home RO Systems
● Office
● Institutions
● Lab

Materials of construction

Plastics – Nylon Valves –  EPDM Diaphagm

Included

Pump only, no fittings or transformer

Note these pumps are not to be used for continuous running all and need cut out switches to prevent burning out
